R Dyer Jointer Plane

R Dyer jointer

30 1/2" long by 3 1/4" wide

tote 3 1/2" high (as is)

heavy round chamfers end with a simple turnout

beech

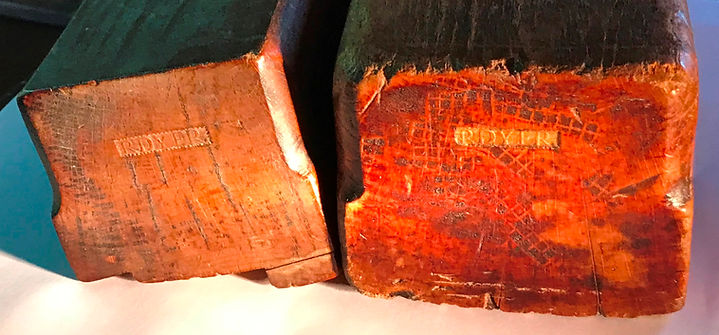

R Dyer panel raising plane with matching construction details; heavy round chamfers with simple turnouts, chamfered round top wedges, escapement design including abutment cheek chamfers, layout scribe lines.

(The presentation of visually based elements (scale imprints, scale drawings, etc.) is a challenge, especially when moving from the printed page to the realm of an electronic medium. For reference, the original GAWP 5, CAWP, BARS and SOJ publications had pages which were 8-1/2" in width.)
