U Clap Jointer Planes

U Clap jointer, modified

​

24" long by 2 7/8" wide

3 7/8" high tote, offset

1/4" flat chamfers that end with a step and a turnout

birch

URIAH CLAP FORE PLANE (Sign of the Jointer 4-2)

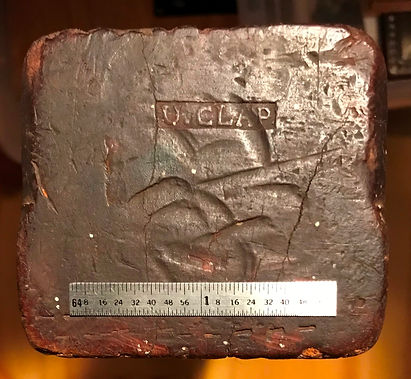

1. Imprint:                     Large U Clap imprint.

2. Length:                     18”.

3. Width:                       3”.

4. Height:                      2 5/8”.

5. Woods:                      Birch body.

6. Chamfers:                 5/16” flat chamfers on the top and on the ends.

7. Chamfer stops:         Separate flute/gouge cut.

8. Tote details:              Square mortise. Undercut heel. Pegged into body.

(The presentation of visually based elements (scale imprints, scale drawings, etc.) is a challenge, especially when moving from the printed page to the realm of an electronic medium. For reference, the original GAWP 5, CAWP, BARS and SOJ publications had pages which were 8-1/2" in width.)
